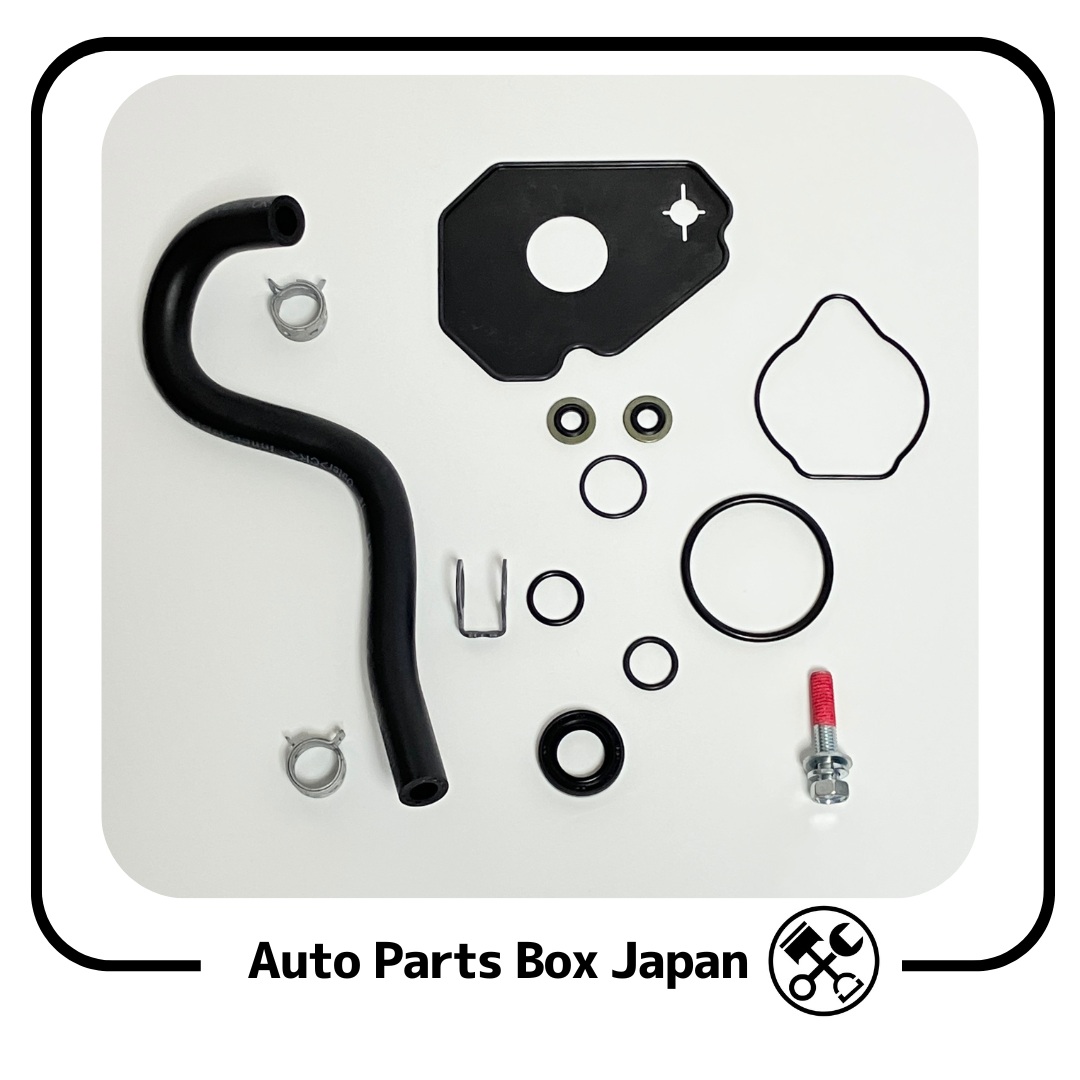

Impreza GC8 Power Steering Pump Repair Set for 34411FA220
What’s Included
Subaru Genuine OEM Parts
- O-rings
- Oil seal
- Reservoir Gasket
- Gasket for High-Pressure Hose Connection
- Pre-coated bolt
Plus

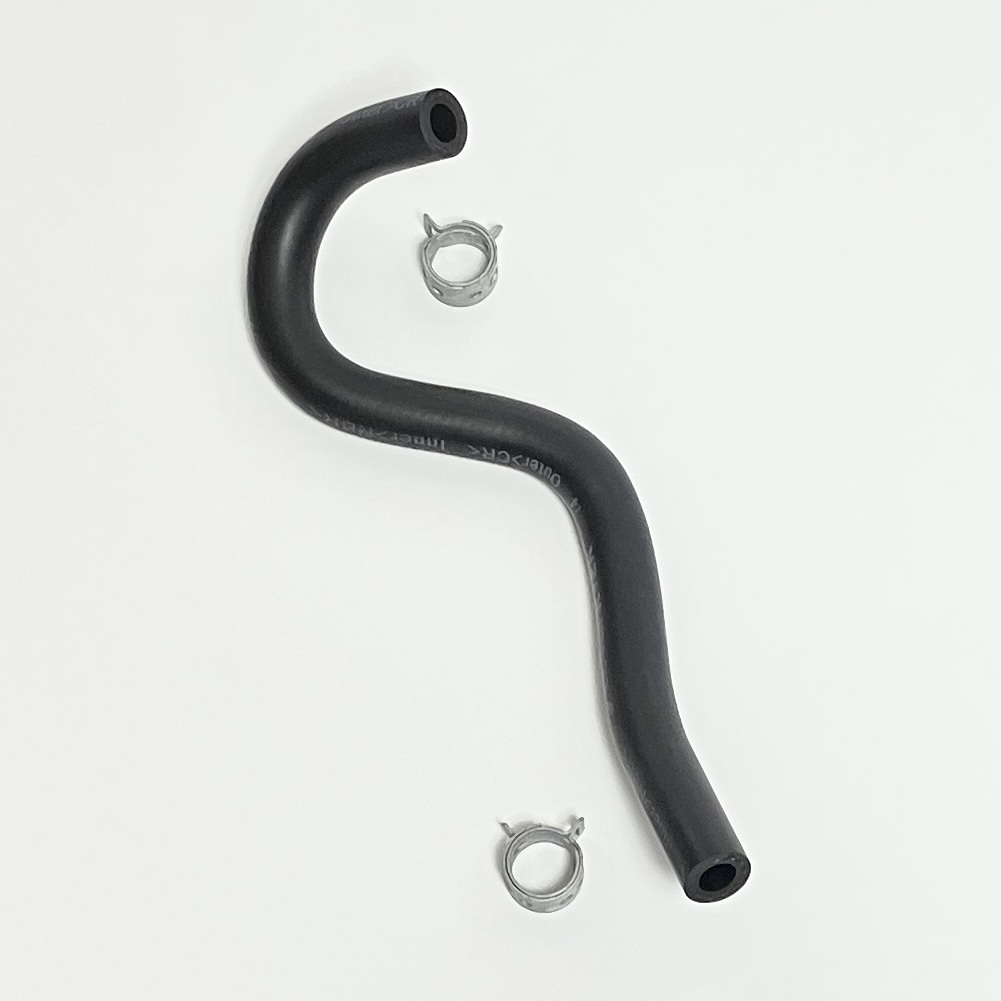

- Reservoir Hose
- Hose clamps
Compatibility
| SUBARU IMPREZA | Models: WRX RA STI, WRX RA, WRX STI, WRX, S201 |
| Genuine Power Steering Pump Part Numbers for this kit |
34411FA220 |
| Years | 09/1998- 09/1998-07/1999 09/1998- 04/2000- |
| Applied Models | GC8F2DD, GC8F4ED, GC8F47D , GC8F48D, GC8F4DD, GF8F58P, GF8F58D, GF8F5ED, GC8G2FD, GC8G48D, GC8G4HD, GC8G4DD, GC8G4ED, GC8G47D, GF8G58P, GF8G58D, GF8G5ED |
| Engines | EJ207, EJ205 / 2.0L EMPI DOHC |
| Mission | MT, AT |
| Drive train | F4WD |
| Body | Sedan, Wagon, Coupe |
| Classification | 7175-0033 |
Important Notes
- Some external components such as the C-clip, pressure switch, harness, and spring have been discontinued and are NOT included.

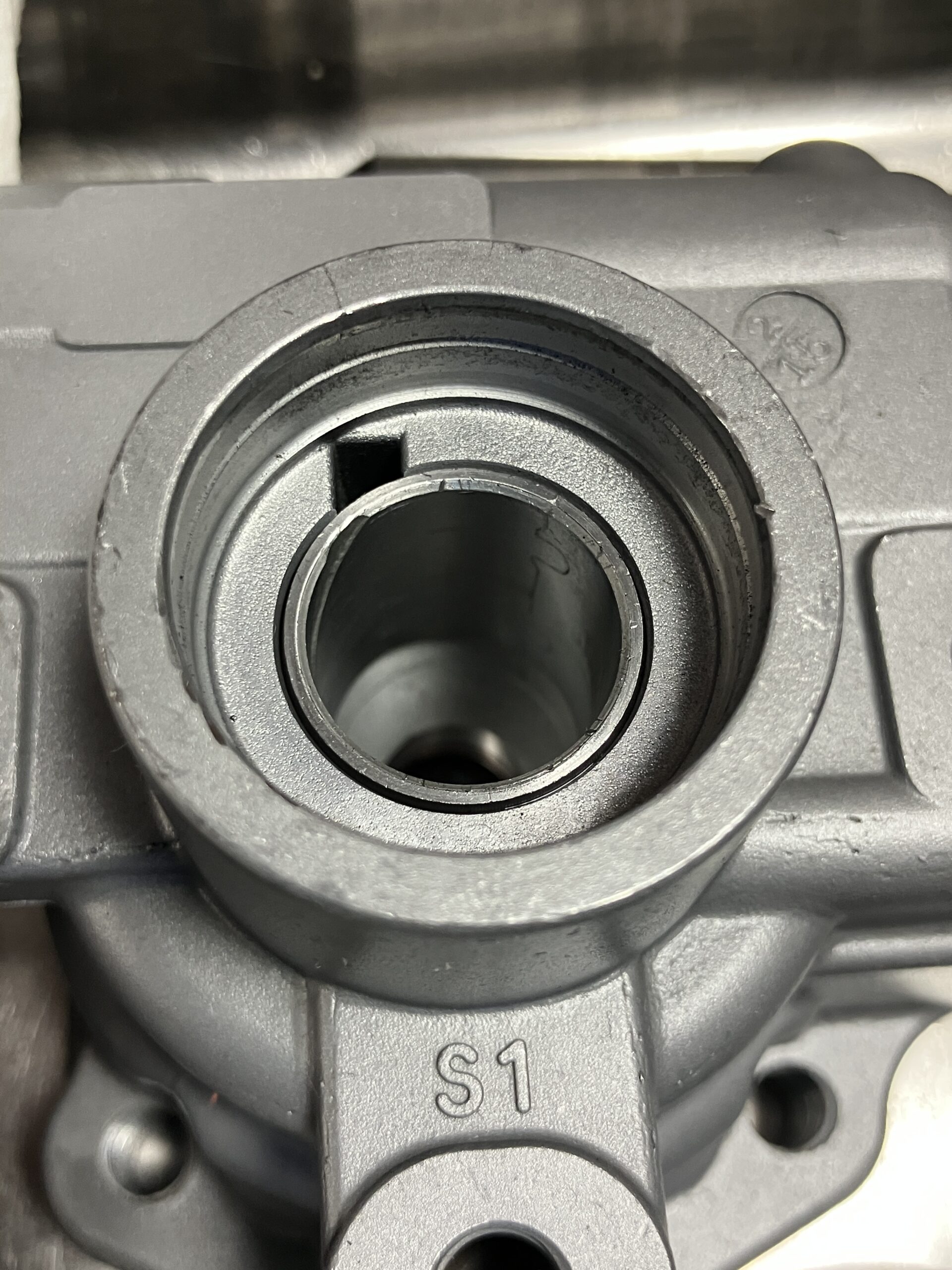

- This power steering pump uses a housing-supported structure instead of a bearing.
If seizure occurs between the shaft and the housing, both the shaft and the housing would need to be replaced.
However, the housing is supplied as a single unit with the case, and this part has been discontinued.
- Pre-coated bolts (MEK-processed type)
On the Subaru Impreza, the power steering pump bracket is secured using pre-coated bolts (MEK-processed type) due to the high vibration and load in this area.
These bolts feature a special treatment in which adhesive components are micro-encapsulated on the threads. When the bolt is tightened, the microcapsules break, releasing the adhesive, which then begins to cure. This ensures a secure fastening, helping to prevent loosening caused by vibration.
While reused bolts can be cleaned and secured with a thread-locking compound, using genuine pre-coated bolts, when available, is generally preferred for long-term reliability.
What Is Not Included
- Hard parts such as vanes and cam rings are not included, as they are normally replaced only when damaged.
How to Check Compatibility
If you do not know the part number, please provide your vehicle’s chassis number, and we will help verify the compatible parts for your car.
