Skyline GT-R BNR32 Power Steering Rack Repair Kit – 49361-05U00 (Type 2)

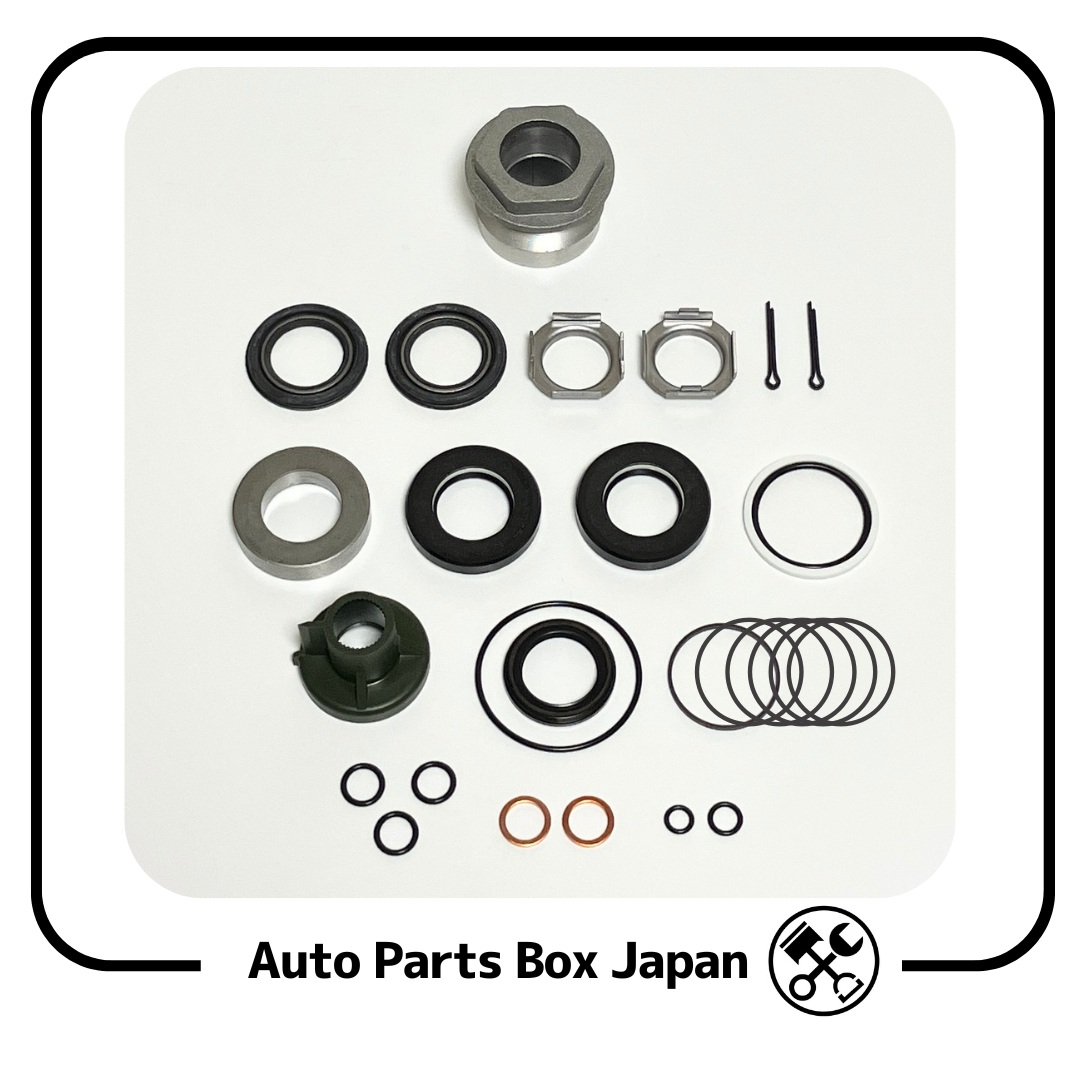

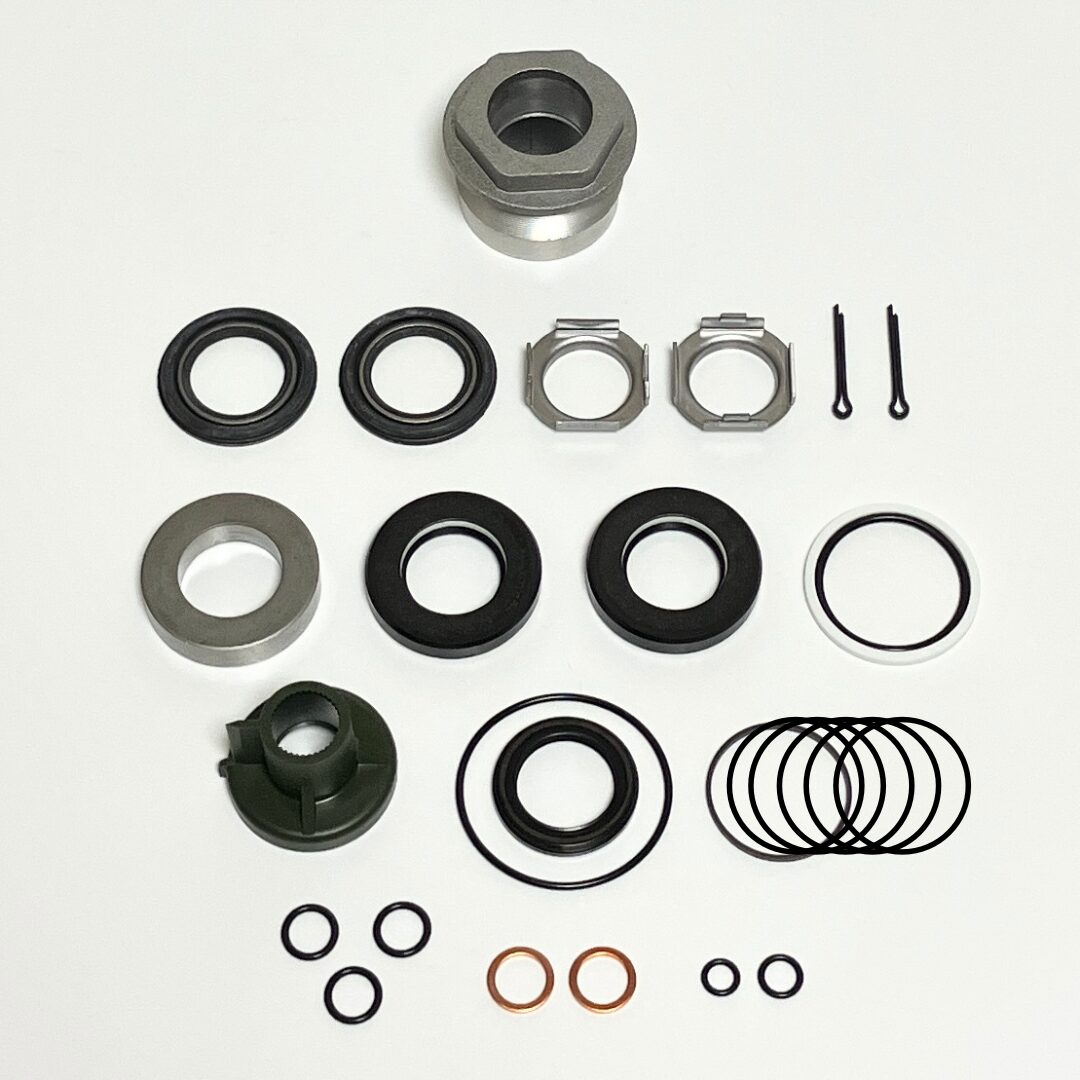

What’s Included

Nissan Genuine OEM Parts

• Spacer (L/R)
• Plates, lock side rod (L/R)
• Pins (L/R)
• Seal kit #1
• Seal kit #2
• Seal
• Cap, rear cover
• Cylinder end cover assembly
• O-rings #1
• O-rings #2
• O-ring #3
• O-ring #4
• Gaskets
• Spring washer
• Spring retainer
• Adjustment shim

Spring Retainer and Adjustment Shim

• If you are unsure of the correct size, we recommend disassembling your power steering rack and measuring the existing Spring Retainer and Adjustment Shim before ordering.
• For customers looking to modify steering feel, please select the desired size
• Certain Spring Retainer sizes are not available for individual purchase, as they are supplied only as part of the rack assembly.

Not Included

The following genuine parts are not included in this repair kit:

• Tie Rods (L/R)
• Tie Rod Ends (L/R)
• Insulators (L/R)

If you would like these parts to be replaced at the same time as the power steering rack repair, please inform us at the time of inquiry.
If you are using NISMO or other aftermarket parts, please transfer and reuse them as required.

Compatibility

Recommended Repairs with This Type 2 Kit

• Includes serviceable internal seals and O-rings for internal rack repair
• Includes a spare cylinder end cover assembly in case of thread damage during disassembly
• Allows for cleaning and inspection of internal components during disassembly
• Helps reduce leaks, noise, and heavy steering when internal components are intact
• This Repair Kit Type 2 is intended for internal rack service only. Rack boots are serviced separately.

Why Are Rack Boots Not Included with This Type 2 Repair Kit?

In some cases, vehicles may be equipped with NISMO or other aftermarket tie rods (L/R), and rack boots may be replaced at the same time depending on the setup.

To avoid unnecessary duplication and additional cost, rack boots are intentionally not included in this Repair Kit Type 2.

This allows customers to:

• Reuse existing boots where applicable
• Install brand-new boots of their choice during the repair
• Avoid paying for parts they do not need

If you are looking for a repair kit that includes rack boots, please consider Repair Kit Type 4.

Important Notice

• Please be advised that the bearing for the steering pinion is not available as a separate part. Therefore, if replacement is necessary, the steering pinion assembly will need to be replaced as a complete unit.
• Some internal rack components are discontinued. If internal wear or damage is found, this repair kit cannot address those issues.
• In particular, the rear housing bearing seal is not available as an individual service part.
  If the bearing or seal is damaged, replacement of the rear housing assembly is required, however this assembly has been discontinued.

Common Symptoms of Power Steering Rack

• Fluid leakage
• Steering noise
• Heavier or inconsistent steering feel
• Unusual vibrations or stiffness

Possible Causes

• Worn or deteriorated internal seals and O-rings
• Worn or contaminated internal rack components
• Low or degraded power steering fluid
• External factors (hoses, connections, tie rods, rack ends)
