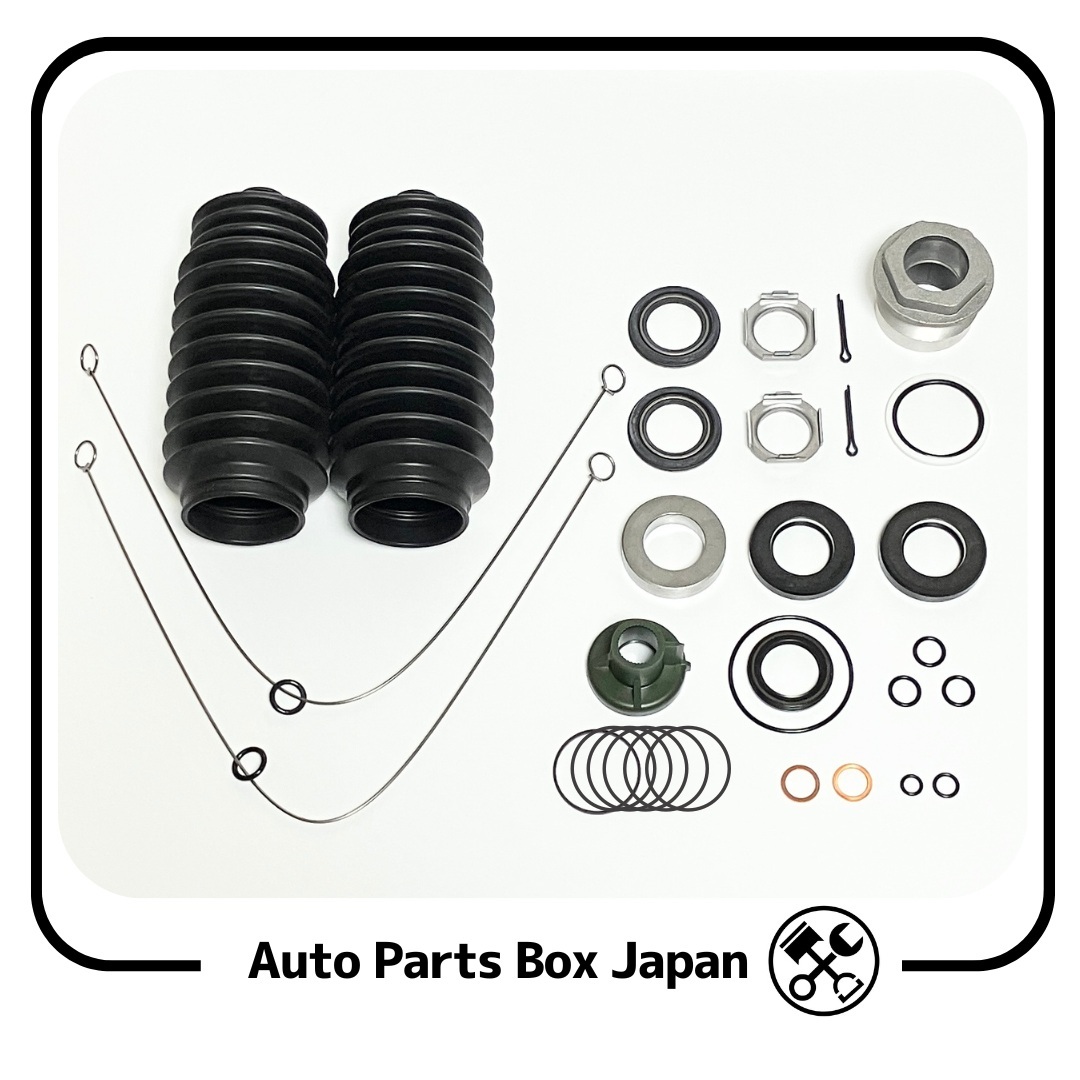

What’s Included
Nissan Genuine OEM Parts
- Boot kit (L/R)
- Spacer (L/R)
- Plates, lock side rod (L/R)
- Pins (L/R)
- Seal kit #1
- Seal kit #2
- Seal
- Cap, rear cover
- Cylinder end cover assembly
- O-rings #1
- O-rings #2
- O-ring #3
- O-ring #4
- Gaskets
- Spring washer
- Spring retainer
- Adjustment shim
Spring Retainer and Adjustment Shim
- If you are unsure of the correct size, we recommend disassembling your power steering rack and measuring the existing Spring Retainer and Adjustment Shim before ordering.
- For customers looking to modify steering feel, please select the desired size.
- Certain Spring Retainer sizes are not available for individual purchase, as they are supplied only as part of the rack assembly.
Not Included
The following genuine parts are not included in this repair kit:
- Tie Rods (L/R)
- Tie Rod Ends (L/R)
- Insulators (L/R)
If you would like these parts to be replaced at the same time as the power steering rack repair, please inform us at the time of inquiry.
If you are using NISMO or other aftermarket parts, please transfer and reuse them as required.
Compatibility
| Power Steering Rack Repair Kit – Genuine OEM Part Number | 49001-12U00 |
| Nissan | Skyline |
| Grade | GT-R.17 |
| Chassis | BNR32 |
| Years | 1991-1993 |
| Engines | RB26DETT |
| Mission | MT.F5 |
| Drive train | 4WD |
Recommended Repairs with This Kit
- Allows for cleaning and inspection of internal components during disassembly.
- Restores internal seals to help maintain proper steering performance and reduce leaks, noise, and heavy steering effort.
Cylinder End Cover Assembly
When removing the cylinder end cover assembly, it is necessary to drill out the staked portion at the end of the gear housing using a 3.0 mm drill bit.
If the staking is not completely removed, the threads of the cylinder end cover may be damaged during removal. For this reason, a spare cylinder end cover assembly is included in this repair kit.
Important Notice
- Please be advised that the bearing for the steering pinion is not available as a separate part. Therefore, if replacement is necessary, the steering pinion assembly will need to be replaced as a complete unit.
- Some internal rack components are discontinued. If internal wear or damage is found, this repair kit cannot address those issues.
- In particular, the rear housing bearing seal is not available as an individual service part.
If the bearing or seal is damaged, replacement of the rear housing assembly is required, however this assembly has been discontinued.
How to Check Compatibility
If you do not know the part number, please provide your vehicle’s chassis number, and we will help verify the compatible parts for your car.
Common Symptoms of Power Steering Rack Issues
- Fluid leakage
- Steering noise
- Heavier or inconsistent steering feel
- Unusual vibrations or stiffness
Possible Causes
- Worn or deteriorated internal seals and O-rings
- Worn or contaminated internal rack components
- Low or degraded power steering fluid
- External factors (hoses, connections, tie rods, rack ends)
